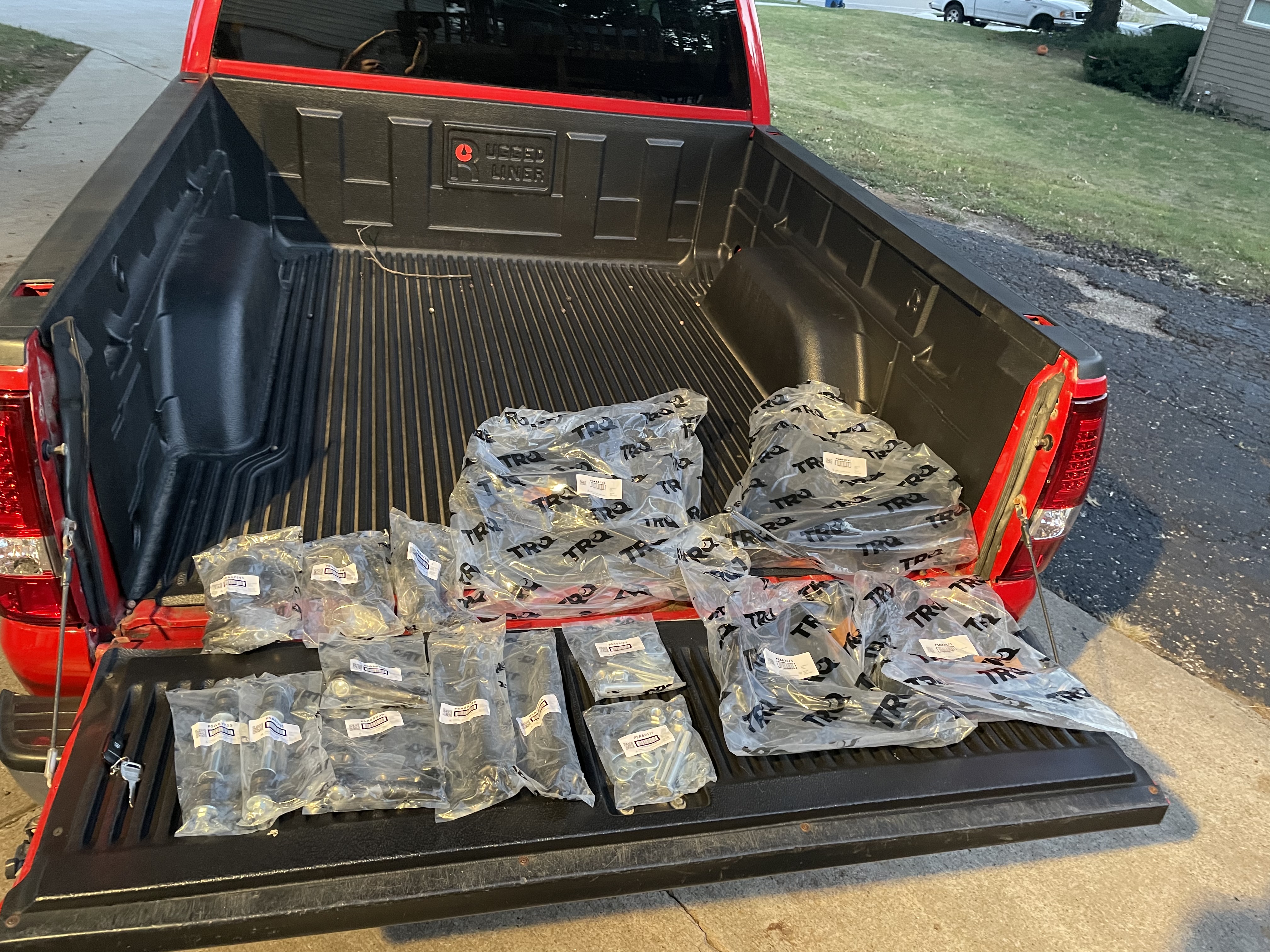

2000 Chevrolet Silverado 1500 4 Wheel Drive with 4 Groove Pitman Arm with Cast Iron Lower Control Arms with Steering Gear without Aluminum Steering Knuckles Front 17 Piece Steering, Suspension, & Drivetrain Kit TRQ PSA69967

Hi, I'm Mike from 1AAuto. We've been selling auto parts for over 30 years! We're dedicated to delivering quality auto parts, expert customer service, and fast and free shipping, all backed by our 100% satisfaction guarantee. We've created thousands of videos to help you install our parts with confidence. That saves you time and money, so visit us at 1AAuto.com, your trusted source for quality auto parts.

You can replace the idler arm bracket by itself. To find the idler arm on your truck, in this case it's on the passenger side, but another easy way is to start at the tie rod end and just follow the arm all the way to your inner tie rod, and then up to your idler arm.

The first step to removing the idler is to remove the cotter pin that holds the castle nut in place. I like to use a pair of cutters to grab it with. It's usually the easiest thing to do, although I may prove myself wrong. There we go. And then you can also use a pair of locking pliers to pull it from the other side. Then you'll take your 21mm socket with an extension, and I'm using a 1/2" ratchet, because it's going to be pretty tight, and we'll crack it loose.

Luckily it's greasy, so once you crack it loose, it usually spins right off. So, ideally you want to have a puller, which you can get from your local hardware store or auto part store. You can usually rent them. And you'll want to put it on like this. We're using a two jaw puller. It wraps up on both sides of the steering arm, and then the center bolt pushes right on the idler arm. Then, in our case, it's a 16mm right here, but depending on the puller, it could be a different size. And at that point, you want to just tighten up your puller until the idler arm breaks free. We're going to be pulling off the idler arm with the idler arm bracket, so we need to take out the lower nut right here, and then the upper one right up here.

In New England we like to spray everything with rust penetrant before we take it off, because it just makes life a lot easier. On the front side of the bracket, there's the actual heads of the bolt that we're going to put a socket on. Right here's the lower one, and then up here's the upper one. So, we're going to use a 21mm with an extension, and a little wobble adapter so that we can get on there. It's not the easiest thing to reach, but once you're on there, it should stay there. And then on the back side, we put a wrench to hold the nut in place, and hopefully turn it.

Now we're heading for the top bolt on the idler arm bracket. We have our 21mm wrench on the back side, and then 21mm socket and extension on the front. At this point, we'll be able to just pull the whole idler arm, and its bracket, right out of the truck.

We've cleaned up our idler arm and idler arm bracket. Both are well used. But we're going to show you how to separate the idler arm from the bracket itself. In our case, there's a 24mm nut on here. That may differ depending on if your car has a original OEM part or if it's been replaced before. In our case, it's 24mm. So we're going to throw it in the vise, and put our 24mm socket on with a 1/2" ratchet -- because you want plenty of torque -- and hopefully we can crack this loose. With the nut off, now we have to pull the idler arm off the idler arm bracket.

So once again, I'm going to reposition this in the vise. Get a puller, which you can rent from a local hardware store, or an auto parts store, or they're actually not too expensive if you just buy them and you think you might be doing this more than once. It might be worth buying a kit to do this. And then you'll tighten down the center bolt. In our case, we have a 16mm on the top of the puller, which we will, once again, use our 1/2" ratchet to tighten up. So, you always want to wear your safety glasses when you're doing these things, safety gloves, because things tend to spring off when you're least expecting it. Kind of like that. So now that it's broken loose, you can pull it right off.

Here you can see the old idler arm bracket and the new idler arm bracket. You can see, the old one is really easy to turn. That's how you know it's worn out, because the insides of it are actually worn out. My guess is that somebody didn't grease this appropriately on a regular basis, and that's something that you need to do if you want to keep these things to lasting a long time. The new one is nice and tight like it should be, and we'll obviously grease this when we install it on the car, and then keep up with the greasing.

You know, probably every oil change we'll put some grease in this and make sure it stays in good shape for a long time. You can see that the mounting brackets are exactly the same. You can line them up, they fit the same. It comes with a new seal on the end, and of course, a new nut. In our case, we're going to be replacing the idler arm bracket and the idler arm. And this is the same process, whether you're replacing one or the other, but we always recommend doing them both at the same time since you have them both out of the vehicle. It's just a really easy thing, and it doesn't cost a whole lot more money to swap them both at the same time.

So to do this, we'll put the idler arm bracket into the vise, and we'll slide the idler arm right onto the bracket. Put the nut on there. This happens to be a 24mm. Depending on what kind of part you have in your car, it may vary. The size may vary a little bit. And at this point, we can tighten this up. So we started tightening the nut, and we found that the whole thing was spinning, like you can see here. So that's why they put a hex on top of this, so that you can put a wrench here and a wrench on the bottom, and then you can tighten down the nut much easier.

While the idler arm bracket and idler arm are out of the vehicle, we're going to put the grease in them, that way it's a little bit easier on us once they're installed. Now we can slide the whole assembly right back in. There's one bolt in place. Now we'll do the lower bolt, which is a little trickier. All right. With the top ... or, with the idler arm bracket bolts in place, then you can push the idler arm into the steering, and tighten up the castle nut, or hand tighten the castle nut. Now we're going to take our 21mm socket and extension and place it on the upper bolt. Put a wrench on the back side. Of course, we want to turn the ratchet in the proper direction, then we'll start tightening up that bolt. And then we'll go for the lower one, which again, 21mm with a ratchet and extension, and a 21mm on the back. And now we have the 21mm idler arm nut that we are going to use a ratchet and extension and socket on.

We want to get it tight enough so that it is held in place, but we also want to line up the castle nut with the hole in the idler arm, so that we can get the cotter pin through. And now you can slide the cotter pin through the hole, and bend it over so that it stays in place.

Thanks for watching. Visit us at 1AAuto.com for quality auto parts, fast and free shipping, and the best customer service in the industry.

Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.

Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and the next time you need a part for your vehicle, think of 1AAuto.com. Thanks.

Start off by loosening up these 22mm lug nut covers. We'll fast forward as Don does this. Once those are all loosened up, you can pull the hub cap free. Now, you want to loosen the lug nuts preliminarily, raise the vehicle and remove them the rest of the way, unless you have air powered tools.

You want to remove these two T55 Torx bolts. We'll fast forward as Don does this. Using a large C-clamp, just put it back behind the caliper here, and the other part right here on the brake pad, and just twist this in, and this going to push your caliper piston in and make it easier to pull the caliper off. Then, just remove the C-clamp, and lift your caliper up and off. Set it aside.

Now, using a flat blade screwdriver, just pry out your brake pad, and sometimes the pad is going to be stuck in there, you can use a flat blade screwdriver and hammer to pry it free. Now you want to remove these two 18mm bolts on your caliper bracket, and you can see, we use a piece of pipe for some extra leverage here. We'll just fast forward as he breaks the other one free and removes both of these bolts. Now, slide the rotor off. We'll fast-forward here as we just remove the clips that hold the ABS harness to the frame and steering spindle, and then there's a clip that holds the harness together, so just pull the clip back and disconnect it. Now, using a flat blade screwdriver and a hammer, just pry off your hub cap. You'll need to remove the center hub nut.

A few ways to do this: you can loosen this before you take your brakes apart, have somebody hold the brakes and do it that way, or you could use a large bar and put it between the lug studs to hold it, and then you could break the bar. If you have the benefit of air tools like we do you need an impact wrench to remove it. Then remove these tree 15mm bolts. You want to just use a 15mm wrench and another wrench for some extra leverage.

You just pry out, and once you've broken it free, you can just turn it out the rest of the way with the one wrench. We'll fast forward as Don does this to other two bolts and removes all three of them. Twist the hub nut back into place just a quarter of the way, and then hammer from the back of the hub to break it free. Then remove the hub nut and pull your hub out. On the left is the old hub; on the right is the new one from 1A Auto. You can see they're identical, and they'll fit exactly the same.

Put your backing plate on to your new hub, and then push the hub back into place. Then just put those bolts back in. You may need to hammer the first one to get started. We'll just fast-forward as Don replaces the other two and tightens up all three of those. Then you want to torque those three bolts to 75 foot-pounds each. Now, remove this clip if you left your old one in, and then feed your ABS harness back into place, putting the clips back where they belong and into those brackets. Then reconnect your harness and clip it back up into place.

Replace that washer and your hub nut, and just tighten it back up into place. Push your rotor back into place, and then twist on the lug nut, and this will just hold the rotor in place. Turn the wheel and put the caliper bracket back into place, and replace those two 18mm bolts. We'll fast-forward as Don does this and tightens both of those out. Now torque both of these to 75 foot-pounds.

Now replace your brake pads and use a hammer if necessary to lightly tap that into place. Grease up your caliper bolts. Put the caliper back into place, and slide those slide bolts back in. We'll just fast-forward as Don tightens those up. You want to tighten these to about 30 foot-pounds. Replace your wheel, replace those lug nuts, and tighten them preliminarily. Lower the vehicle and tighten them the rest of the way. Torque the lug nuts in a crossing pattern to 100 foot-pounds, and torque this hub nut to 125 foot-pounds. Put the cap back in place and put it back in. Take your hub cap and just tighten up those bolt caps. After doing work on your brakes, you want to pump the brake pedal until it firms out, and then try a stop test from 5 miles per hour and ten miles per hour. Then you're all set.

We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.

Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.

Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and the next time you need a part for your vehicle, think of 1AAuto.com. Thanks.

In this video, we're going to show you how to replace a sway bar link on this 2002 Chevy Suburban, and it's the same part and similar process on these Suburbans from 2000 and 2006. We show you on the passenger's side, but on the driver's side it's the same procedure. The items you need for this include a new sway bar link from 1AAuto.com, a 14mm and 22mm socket and ratchet, locking pliers, a hammer, and a reciprocating saw depending on the condition of your vehicle.

Remove your hubcap by loosening up these lug nut caps and pulling the hub cap. Now, you want to remove the lug nuts. If you don't have air powered tools, you want to do this while the vehicle is on the ground. You can loosen them preliminarily, raise the vehicle and remove the lug nuts the rest of the way, and pull the wheel out. Using locking pliers, clip on to the top of your stabilizer link, and then remove this 14mm bolt. We'll just fast forward as Mike does this.

Now, you want to just hammer the link through. If the link doesn't move, you may have to use a reciprocating saw and cut it. Up top is the old part; below is the new part from 1A Auto. You can see they're identical, and they'll fit exactly the same. You want to put your stabilizer link back into place, starting with a washer and a grommet, then through the hole, then another grommet, then a washer, then the tube; then, before going through the next hole, another washer and grommet; then, on the top another grommet and another washer, then the nut.

Here, we just put the jack underneath the link. That's just to push it up through and compress the washers a little bit so that you can get the nut on the other end. Once I get another nut on, you'll see I just release the jack. You want to obviously be supporting the vehicle with jack stands, and then use your jack to push the bolt of the link up through. Then, you want to tighten up the sway bar link, and you basically want to tighten it up until the rubber bushings are compressed enough so that they're the same diameter as the washers.

Put the wheel back in place, then replace each of your lug nuts and tighten them up. You want to tighten them preliminarily, lower the vehicle, then tighten them the rest of the way. Torque each lug nut in a crossing pattern to 100 foot-pounds. Replace the hubcap, and just tighten up those lug nut caps.

We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
