Replaces
Part Details
Specifications
Why Delphi?
As an Original Equipment Supplier, Delphi Automotive products from 1A Auto come directly from the source. You wont have to worry about going to the dealership for Original Equipment - these parts are the exact same as the original. Delphi products come with the same quality from the dealership at a lower cost to you.
Returns: Parts with electrical components cannot be returned once installed.
This part fits 23 vehicles spanning 1987-2003.
| Year | Make | Model | Description |
|---|---|---|---|

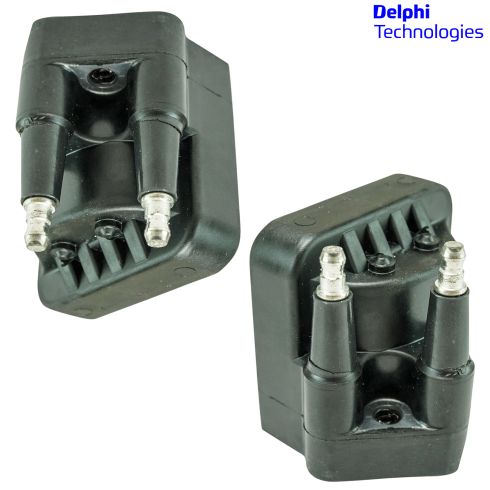

| 1987-1992 | Buick | Century | Buick Century L4 2.5L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1993-1996 | Buick | Century | Buick Century L4 2.2L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1989 | Buick | Skyhawk | Buick Skyhawk 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1991 | Buick | Skylark | Buick Skylark L4 2.5L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987 | Buick | Somerset | Buick Somerset L4 2.5L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1988 | Cadillac | Cimarron | Cadillac Cimarron 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1989 | Chevrolet | Beretta | Chevrolet Beretta L4 2.0L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1990-1996 | Chevrolet | Beretta | Chevrolet Beretta L4 2.2L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1989 | Chevrolet | Cavalier | Chevrolet Cavalier 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1990-2002 | Chevrolet | Cavalier | Chevrolet Cavalier L4 2.2L Engine VIN 4 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1996 | Chevrolet | Corsica | Chevrolet Corsica 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1990-2001 | Chevrolet | Lumina | Chevrolet Lumina 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1994-2003 | Chevrolet | S10 Pickup | Chevrolet S10 Pickup L4 2.2L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1994-2003 | GMC | S-15 Sonoma | GMC S-15 Sonoma L4 2.2L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1997-2000 | Isuzu | Hombre | Isuzu Hombre L4 2.2L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1989-1991 | Oldsmobile | Cutlass Calais | Olds Cutlass Calais L4 2.5L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1992 | Oldsmobile | Cutlass Ciera | Olds Cutlass Ciera L4 2.5L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1993-1996 | Oldsmobile | Cutlass Ciera | Olds Cutlass Ciera L4 2.2L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1988 | Oldsmobile | Firenza | Olds Firenza L4 2.0L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1991 | Pontiac | 6000 | Pontiac 6000 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1988 | Pontiac | Fiero | Pontiac Fiero L4 2.5L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1987-1991 | Pontiac | Grand Am | Pontiac Grand Am L4 2.5L 2 Piece Ignition Coil Set Delphi DEERK00044 |
| 1995-2002 | Pontiac | Sunfire | Pontiac Sunfire L4 2.2L Engine VIN 4 2 Piece Ignition Coil Set Delphi DEERK00044 |
| Brand Label | Part Number |
|---|---|
| DIY Solutions | IGN00798 |
| DIY Solutions | IGN00735 |
| Delphi Engine Management | GN10123 |
| Delphi | GN10123 |
| General Motors | 10477602 |
| General Motors | 1103745 |
| DENSO Auto Parts | 673-7102 |
| IMC | CLS1004 |
| BorgWarner | E51 |
| General Motors | 10468391 |
| General Motors | 1106008 |
| General Motors | 19352925 |
| IMC | 729 25003 614 |
| Wells | C1316 |
| IMC | 729 25003 |
| ACDelco | D540 |
| ACDelco | D555 |
| General Motors | 10497771 |
| Original Engine Management | 5192 |
| Honda | 8-10468-391-0 |
| BWD | E219 |
| Driveworks | 26221 |
| PRENCO | 36-1117 |
| BorgWarner | E51P |
| Beck/Arnley | 178-8206 |
| Honda | 8-10472-401-0 |
| NGK | U3015 |
| ACDelco | D576 |
| BWD | E51 |
| Standard Motor Products | DR-39 |
| General Motors | 10495121 |
| BorgWarner | E219 |
| Isuzu | 8-10472-401-0 |
| Airtex | 5C1058 |
| DENSO Auto Parts | 673-7103 |
| Spectra Premium | C-503 |
| Echlin | IC39 |
| Echlin | IC408 |
| MasterPro Ignition | 25192 |
| NTK | U3015 |
| General Motors | 10467067 |
| Isuzu | 8-10468-391-0 |
| ACDelco | D545 |
| NAPA Mileage Plus | IC39SB |
| Wells | C-849 |
| Advan-tech | 5A9 |
| WPS World Power Systems | CDR39 |
| Standard Motor Products | DR-47 |
| Walker Products | 920-1005 |
| General Motors | 10472401 |
| Standard Motor Products | DR-39T |
| Magneti Marelli | 1AMIC00002 |
| General Motors | 19353734 |
| BWD | E51P |
| NAPA Mileage Plus | IC408SB |
| Duralast | C-849 |
| Airtex | 5C1077 |
| General Motors | 10458179 |
| Carquest | 26C1005 |
| ACDelco | E530C |
| Carquest | 52-1924 |
| Hollander | 610-02871 |
| KEM | 343Q |
| KEM | 342J |
This item may be interchangeable with parts from other brands with the above part numbers. This information is provided only for reference and does not guarantee that the item you are purchasing is identical to parts with part numbers from the brands listed above. To confirm that this item fits your vehicle, use the above "Check Vehicle Fit" option.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
Returns: Parts with electrical components cannot be returned once installed.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the internet. Hi, I'm Mike Green. I'm one of the owners of 1A Auto. I want to help you save time and money repairing and maintaining your vehicle. I'm going to use my 20 plus years experience restoring and repairing cars and trucks like this to show you the correct way to install parts from 1AAuto.com. The right parts installed correctly, that's going to save you time and money. Thank you and enjoy the video.
In this video we're going to show you how to replace the ignition coil on this 98' Venture with the 3.4 liter, same as probably the Montana and the Silhouette. These coils are used on a lot of different GM engines. The way we do it on this van may not necessarily be the same as the way it's on your vehicle if you don't have one of these vans. You're going to need a quarter inch drives ratchet, quarter inch is how big this drive is. You'll need an extension, this is about one and a half or two inch extension. You'll probably want you'll need one at least that long. You may want one a little bit longer but it can't be too long and then a 7/32s socket. Coils in this 98 are actually located in the back of the motor; make it a little tough to get to. This is the coil pack here and they're actually mounted back there just like this.
We'll have the- we'll zoom in a little bit. As you can see right here is one of the wires down to the first coil and then here's the other wire down to that first coil and then there's two other coils, coil packs right next. It's not too difficult, you can grab hold the wires easy enough. Pull one off, that's one on the left side as I'm looking at it. I'll pull it over here and then keep it over here and out of the way. Here's the other wire, just going to push that over there. Obviously, just do these one at a time. You can see it's in there like that so there's a bolt right here between the two post where you just took the wires off and then there's a bolt right back here underneath. You pretty much just have to do it by feel. The size of the bolt is a 7/32s standard which is a little weird. What I'm going to do is I can go back, I could feel the post first and then you go back, reach down and feel the bolt. Get my socket extension on there, make sure my ratchet is counter clockwise. We'll just speed up here removing that back bolt. I still have my socket in the extension on there, it's getting easy enough for me to turn with my hands. I'll turn it with my hands until I feel it's ready to pull up and out. There's the first bolt out. Reach in there; I could feel the two posts. Put my socket right down in between. See that you could see that right there, see the two posts and the extension socket right there.
This one, we'll just turn the whole bunch. Make sure it's all the way out and that it won't come out. I'll just leave it there and then pull the coil up. It looks like there's some interference here, the wiring harness back there. Now, I'll pull that up and right out and there's our bolt. Here's our original coil, new coil from 1A Auto, you can see the coil from one another, it's exactly the same. The original coil does have the markings of the cylinder number. This goes to cylinder number five and this one goes to cylinder number two. New coil doesn't have that. This is actually an original equipment coil but it's just meant to replace either of the three original coils. As you could see on the back, the coil does plug in when you bolt it in right there, same thing on the 1A Auto coil. This is one is working fine in this vehicle so I just will replace the original one. When you put it back in, especially on this end one there where some harness is down there, they were getting in the way. What I'm going to do is try and lift those up out of the way a little bit and put the coil back in and you want to be careful that you don't bend the contacts that are down there. You could feel them down there.
I'm going to reach in with this hand, I'm going to feel where those contacts are, I could feel them sticking up. There's a whole bunch of wires and I'm going to make sure out of the way. I'm going to feed my coil in and make sure the backside goes underneath those wires. Now what I'm doing here is gingerly moving the coil around a little bit and trying to get it to settle down on those tabs. You just want to be very careful that you don't bend the tabs at all. It's just a matter of feeling in there with both hands and getting in the right spot and then it goes right down and on. Now we'll speed up through putting those bolts in and then you tighten them up you want to tighten them up nice and snug, they don't have to be overly tight. Make sure it's tightened up. This one from that side goes on there and this one bends up and around and goes back on.
We hope this helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the internet. Please feel free to call us toll free 888-844-3393. We're the company that's here for you on the internet and in person.
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Don from 1A Auto. I hope this how-to video helps you out, and the next time you need a part for your vehicle, think of 1AAuto.com. Thanks.
In this video we're going to replace the ignition coils. We're going to do one of the coils; the second coil is basically the same procedure. All you're going to need is a 7/32 socket with a ratchet, and maybe an extension.
The coils are on the side of the engine. The original ones are marked one and four on that front one. Then you see there are the One Cylinder, Two Cylinder, Three Cylinder, and Four Cylinder. You follow that Four Cylinder wire right to the coil, and it's hooked to the four post. It's very important when you replace your coils, obviously, that you plug the spark plug wires back in correctly.
We do two things. We only replace one coil at a time, and as we take the coil off, we put the wires onto the new coil. The other thing you can do as well is you can just mark the new coil with a paint marker with the same markings as the original. As you saw before, the cylinders are one, two, three, and four from left to right. Make sure you plug them in correctly to the new coils.
The coils are held in by two bolts. You can see one right at top, and then the other one from the other coil if you unplug that lead there. There's the other one, and then there's the bottom screws that are directly opposite of the top ones. You can see here, Don goes for the bottom bolt first, and that's a 7/32 socket with a ratchet. You will need a socket and ratchet to do this. It really is pretty much impossible to get to the bottom bolts with a wrench. So he removes that bottom bolt first, and then he'll turn his attention to the top bolt. Now, with the bolts undone, take the coil out, and then Don removes the two bolts from the coil. Put those aside.
Here's the new coil from 1A Auto, it's exactly the same as the old one. Now, what Don will do, is he'll take and remove one of the plug wires, and just plug it right into the new coil. Then he'll take the other plug wire, unplug it from the old one, and plug it right into the new coil. That way he doesn't have to worry about remembering which one goes where. There are two tabs on the coil base. They line up in the coil. Just be careful that you don't bend those tabs. Get the new coil in place and plugged in. Then reinstall the bolts.
We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.
