About TRQ:
TRQ is a trusted brand dedicated to making every repair a success story by combining premium parts with easy installation. Each TRQ part is engineered by a team of automotive experts to meet or exceed OEM standards, delivering enhanced performance and maximum longevity. With rigorous in-house testing, the brand ensures superior fit and function across every product line. TRQ also provides customers with best-in-class, step-by-step installation videos—so you can complete repairs with confidence, whether you're a first-time DIYer or an industry professional.
Our direct fit gas-charged strut assemblies help to restore your vehicle’s handling and ride quality to just like new.
Our direct fit gas-charged shock absorbers help restore your vehicle's handling and ride quality to just like new.
Attention California Customers:
WARNING: This product can expose you to chemicals including Chromium (Hexavalent Compounds), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Hi, I’m Mike from 1A Auto. We’ve been selling auto parts for over 30 years!
What's up, guys? I'm Andy from 1A Auto. Today I'm going to be replacing these rear shocks on this 2016 Ram 1500. If you need these parts, or other parts, for your vehicle, click the link in the description and head over to 1aauto.com.
We're going to loosen these lug nuts up, going to use a 7/8ths socket. You can also use a 22mm socket and a breaker bar. Just want to crack 'em free before we raise the vehicle. I'm going to raise and support the vehicle. We're using a two-post lift. If you're doing this at your house you can use a jack and jack stands.
I'll take these lug nuts off, we'll just use the socket. Take that last lug nut off. You can grab the tire, take it off. This vehicle has a mud flap, so I'm going to remove this. Going to use an 8mm socket and ratchet. Remove these two bolts, and then there's a screw right there. Then I'm going to use a Phillips head screwdriver. Pull this screw off. There's actually a nut on the back side, so I'm just going to hold the nut with my fingers. Pull that out. If you needed to put a wrench on there. Set that aside.
Now I'm going to remove this inner fender well. We're going to remove these bolts. There's nine of them. Right here, here, here, and then those two as well. Just use an 8mm socket and a ratchet. Take that last screw out. Grab the inner fender liner. Just going to slide it out. Take it out just like that. I'm going to support the rear axle so that it doesn't fall once I pull the bolts out of the shock. So, you can use a floor jack, or we're using the transmission jack, or a screw jack, or a pole jack.
I'm just going to break this bolt free. I'm going to use a 21mm socket and a breaker bar. Just loosen it up. All right. So, to get this upper bolt out, the nut on the inside is just spinning, so I had to take a 21mm wrench and actually heat it up and bend it. If you're doing a lot of these jobs, you might want to do this, or get a short 21mm wrench. There's no way to get a socket on the inside of here. If you get the wrench on the inside right here. Just like that. Then I can take a 21mm socket and breaker bar, loosen up this bolt from the inside. I don't want to take the bolt out completely, 'cause I do want to support the rear axle before I take the bolt out, but at this point I want to get the nut off from the inside. Just going to loosen it up. So I'll loosen this bolt up and take it out. Once it's pretty loose I can take this modified wrench out. I'll try to take the nut off with my fingers. Slide the nut off. Just leave that in there for now.
Now I'll loosen up the bottom bolt with a 21mm socket and breaker bar, 21mm wrench. Loosen it up. Take this nut off. Once that's out. Just want to make sure your support is good for your rear differential, then we can pull these bolts out. Pull this bolt out first. Pull the top bolt out next. Slide the shock right out. This is our old shock. Here's our new shock from 1aauto.com. It's a KYB shock, it's got the same bushings, same length, same dust shield. Get yours at 1aauto.com and get ready to rock and roll.
Now I'm going to slide the shock into place, start with the top. Take the shock bolt, get that installed. Get the nut on the inside started. Then we'll try to line up the bottom. I am actually going to have to lower the rear differential a little bit. Now going to raise it up. When it's in position take the bolt, slide that in. Take the nut, put the nut on. Now going to take the ratchet and the wrench, and tighten this bolt up. Snug that up, and do the same for the top bolt. We're going to take a torque wrench, and we're going to tighten these down to 100 foot pounds. I'll start with the top one. I still have my wrench on the inside. Now I can pull the wrench off. Now I'll take the bottom one.
Now we're able to lower the support for the rear differential. I'm going to reinstall this in your fender well. Bend it up a little bit, should be able to get it in. There we go. Just going to take these bolts, get these bolts started. I'm going to reinstall the mud flap before I tighten those other screws up. Get these started. I'll take an 8mm socket, extension, and ratchet, going to tighten up all these bolts, and those too. Then just snug those down. You are tightening plastic down, so not too tight. Take the wheel, line it up with the lug nuts. Take the lug nuts, get those started. Just take the socket, make sure these are all snug. I'm going to lower the vehicle and torque them. Going to take a 7/8ths socket or a 22mm socket, and a torque wrench, and I'm going to torque these to 130 foot pounds. We're going to do this in a star pattern, so that the wheel gets tightened down evenly. I'm going to go around one more time, just to make sure.
Thanks for watching. Visit us at 1AAuto.com for quality auto parts, fast and free shipping, and the best customer service in the industry.
SBA28707
The shock absorbers are a great replacement for 2018 Ram 1500 tradesman. Very happy and the truck feels and rides much better.
Nice smooth ride

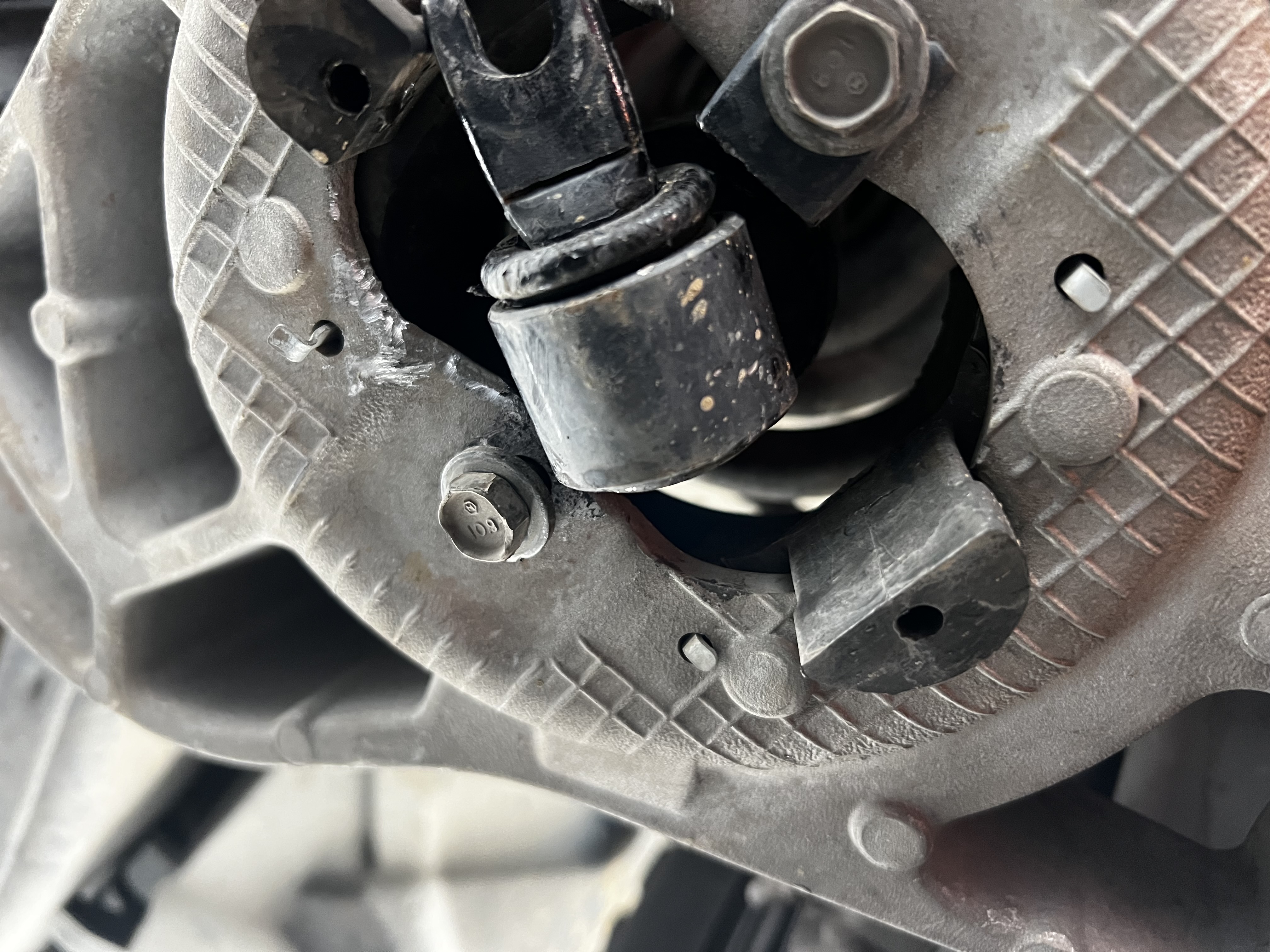

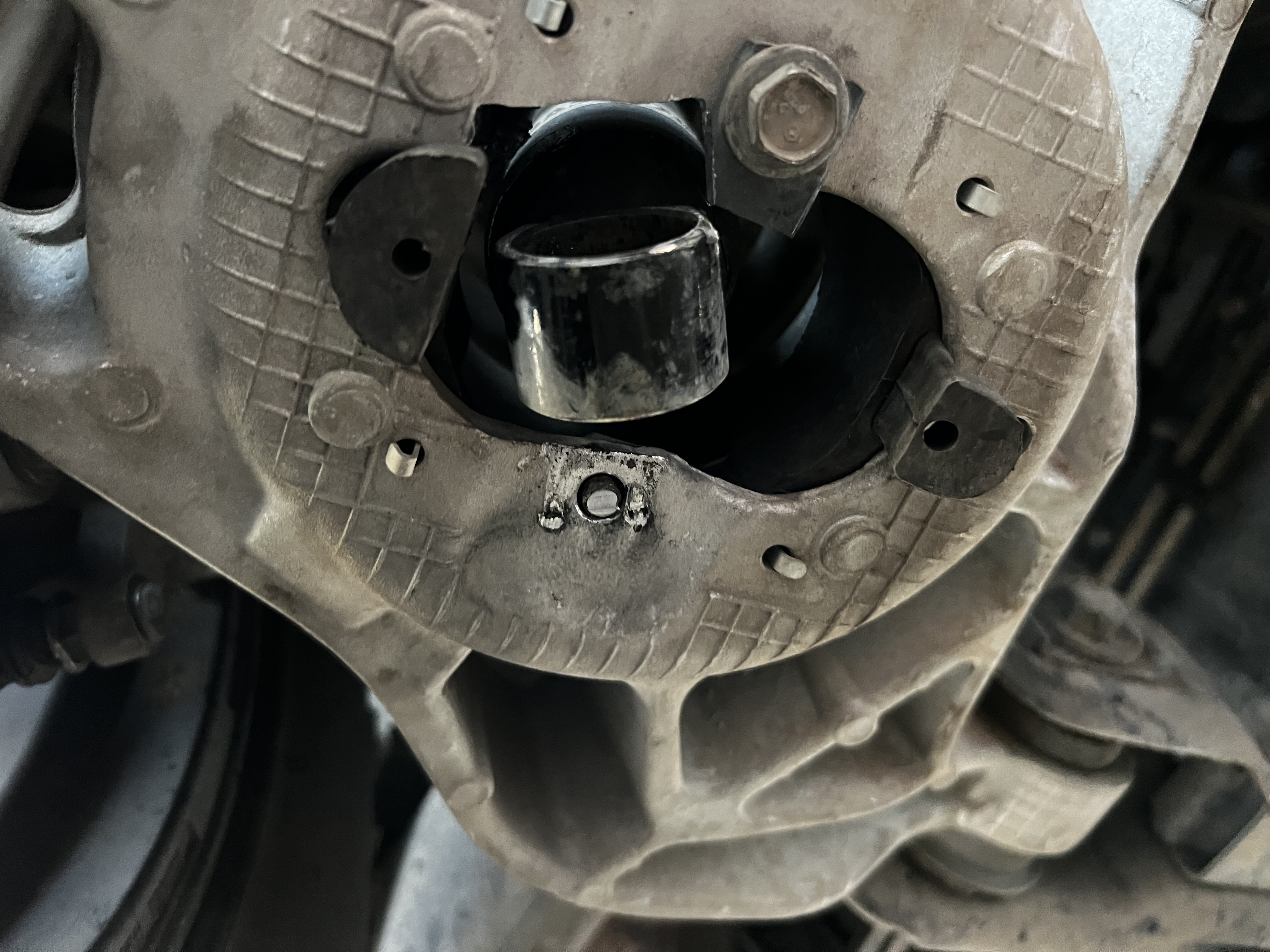

Both driver and passenger shocks broke in the exact same spot while I was driving on the highway going approximately 75-80 mph. Installed them only 2-3 month's ago. Very disappointed. I would not recommend these at all. Seeing the places they broke I'm hoping the manufacturer puts out a recall before someone gets injured or god forbid die.
Honestly they are coming off the truck this weekend and being replaced! With Monroe The rear of this truck is so sloppy you can't get on the throttle with out it Hopping and swaying if I can find the paperwork I will ask to return them!
works great! thank you
The torque specifications for installing these shock absorbers are: Upper mounting bolt: 100 ft-lbs Lower mounting bolt: 85 ft-lbs
