About Trail Ridge:
Trail Ridge Truck Accessories are developed and built with a promise to provide high quality, durable parts for your truck; backed by the best warranty in the automotive industry. Manufactured from the highest quality materials and constructed to meet or exceed OEM standards. Every Trail Ridge part is rigorously tested ensuring superior fit, function, and durability. Quality, trusted value, and hassle-free installation backed by our 100% satisfaction guarantee.
Exact fit - To obtain proper fit and function confirm your vehicle has the exact mirror options listed.
Attention California Customers:
WARNING: This product can expose you to chemicals including Chromium (Hexavalent Compounds), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
In this video, we're going to show you how to replace a side view mirror on this 2003 F-250. The procedure is basically the same for any '99 to '07, although mirror options and whatever may differ. At 1A Auto, we do offer this towing-style mirror. You can obviously replace a broken mirror, and something popular for us is a lot of people replace the smaller, paddle-type mirrors with the large towing mirrors. We do offer these mirrors in manual as well as various power, power heated, etc. The tools you'll need are 7mm socket with a ratchet extension as well an 11mm socket and a flat-blade screwdriver.
If you wanted to prevent the battery from running down if you have the doors open for an extended period of time, just disconnect your negative battery cable using an 8mm wrench, loosen up the nut, and then pull the cable off. Using a small flat blade screwdriver, take this lens, pop it off. Mine's actually broken. Should pry out here. Pop it off. Here, you're going to do the same thing. You pull up your hand or use your screwdriver a little bit. Right in the front. You pull that up, pull it forward, and then you disconnect all the harnesses. There's little push tabs on them. Push on the tab with your thumb. Pull the harness here. Push on the tab here. Tab here. Push on it to remove it.
Same thing here. You just pull down this trim panel. It's got two clips that hold it on. Now there are two 7mm bolts, one right there and then one right there. 7mm socket with a ratchet extension, a wrench would work as well. Fast forward as I just remove those two bolts. Once those two bolts are off, just lift up on your panel, bring it out, and then behind is your courtesy light. Just turn it counterclockwise, pull the socket out, and your door panel comes off. Then you're going to want to pull down water shield here and disconnect this pin. Disconnect this harness connection. It's just a little tab right here. Push in and pull it out, put it back in. Then there are four 11mm mounting bolts, two right in there and then two behind the plugs. I'm going to speed up the tape here through removing those four 11mm nuts. You want to try to avoid dropping them down into the door if you can. I'm very careful. At one point, you'll see I actually use a screwdriver to help me keep a bolt in the socket. If you do drop them down in the door, not the biggest or worst thing, you just have to remove the speaker to reach down in there. There's the mirror off. The new mirror from 1A Auto comes with a new pad, peel the backing off. Run the two studs there. Pull your harness down. You want to stick it down into the mirror. Take the mirror, put your harness through first. Now, again, feed the harness all the way down. Make sure it doesn't get caught up at all. Pull the studs through.
What you want to do is just put one of your bolts on through, start it on there. See my harness connection. Just feeding it up through here and pulling it through. Make sure it's through correctly. Start another bolt, or, nut. I'll speed up here as I just start those four 11mm nuts and then tighten them up. You want to tighten them up nice and firm. There's no reason to over-tighten them. You don't have to get them as tight as possible or anything like that. You just want to tighten them nice and firm. Take that, bring your switch up here. Obviously, you'll have to reconnect the battery to do this. Quick test. Mirror's working.
To reinstall your door panel, what you want to do is take your bottom clips and they're actually designed just to go on here and rest in place and you reach down and put in your courtesy light, and turn it clockwise to lock it in. Then make sure all these harnesses coming up through. Press it against, lift it up a little bit, make sure your door lock comes through, press it against. You lift it just up a little bit, push it in, and bring it down on to make sure you're nice and tight against the door. Nice and tight against the door over here. Then put these plugs back in place.
We'll speed it up again as I take those two 7mm screws, put them in and tighten them up nice and firm. Now I'm going to clip the molding on off the top to cover the mirror mounting holes and then take my switch panel, reconnect all my harnesses, then I slide the tab back into the back first. Make sure no wires are getting pinched in there and then clip it down in place. It's all set. If you disconnected your battery, then reconnect it, and tighten up the 8mm bolt.
We hope this helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll free, 888-844-3393. We're the company that's here for you on the Internet and in person.
TR00018
Fitment, 5 stars Ease of install, 5 stars Weird glass distortion in the passenger mirror glass, creates a doubling illusion when viewed that actually makes me feel sick, 0 stars Will update review if the issue is resolved.
Great product! Some assembly required that I didn't realize until I received them. Shipped quite well, could use some directions/youtube links in the box, but everything was relatively easy to find online.
The mirrors worked perfectly an fit up great. The heat function and blinker with marker lights are great.
I'm definitely happy with the Headlight assemblies. Perfect fit, easily installed. I did have an issue with the first set that was sent. I notified the service department and they made it right extremely fast and without any issues.
Absolute best bang for your buck. Well built and sturdy mirrors that don't shake and rattle at all. Even after a year of having them on they still hold up good. Even got side swiped going down the road and it didn't demolish the mirror just the top cap and the mirror. Definitely worth the money
Excellent mirrors! Easy install, new mounting hardware included. BIG difference in the old style mirrors. The mirrors are so much better than factory 06 F250 mirrors - I was almost all the way home before I realized I forgot to extend them.
Perfect fit for my 2005 F350 crew cab Lariat model. Effort was truly minimal, looks great, and all features work fine. Heated. Six-way adjustment. Manual collapse. They are a major improvement for visibility. Especially the tow mirrors. 5 stars. Also, A1 was great to work with.
Product ordered and came in box with no damage. Item fit perfectly and functioned great. No issues with installation!
Very easy install. Replaced factory mirrors. Can see much better out of both the main mirror and spotter mirror. Excellent upgraded.

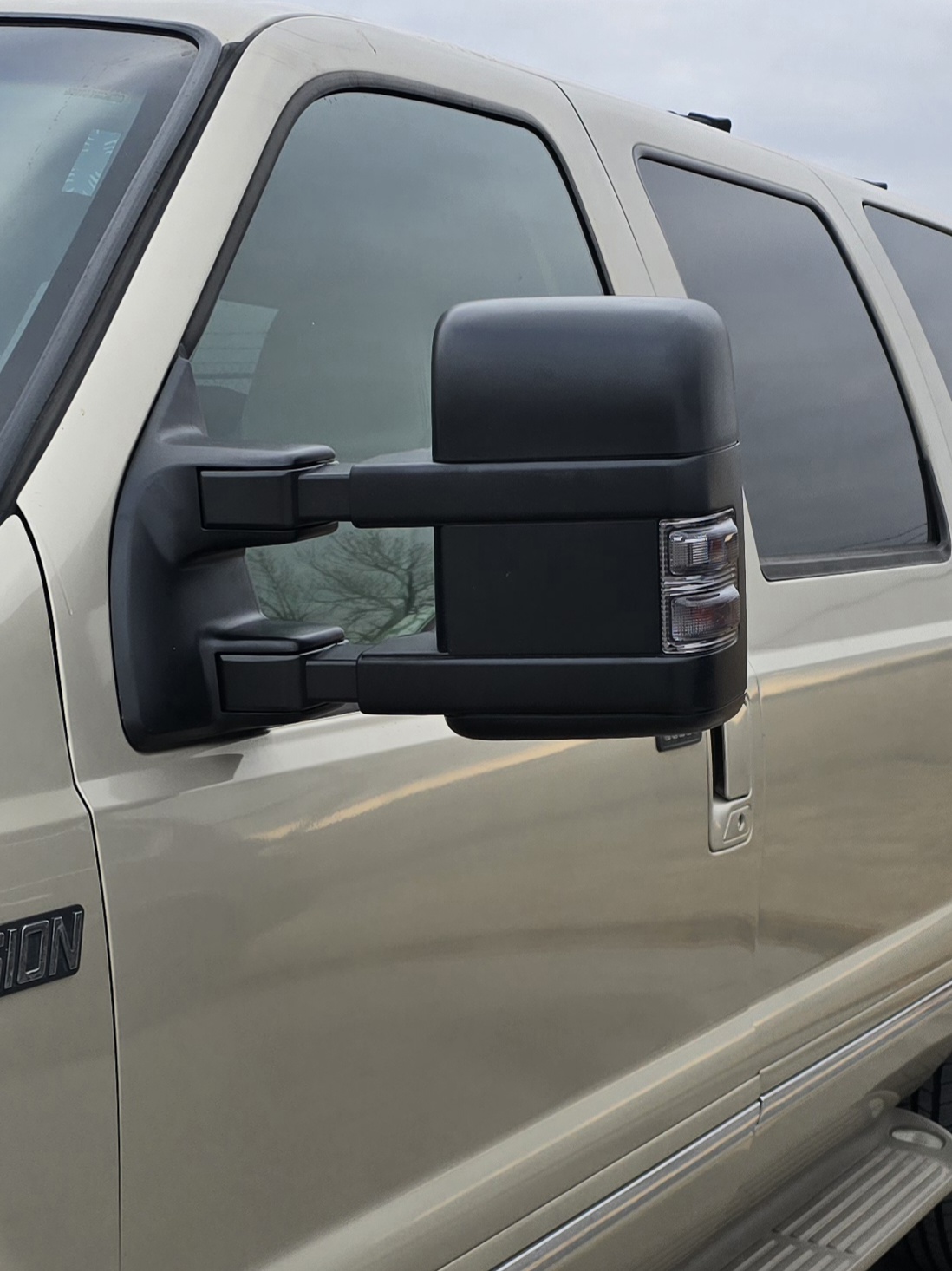

Theses were a great upgrade for the 2004 Ford Excursion. Totally plug and play. It takes longer to pull the door panel then the rest of the install. Great optical quality, heater work great and everything functions like factory. Now I just need a replacement drivers mirror due to someone that shouldn't have a license hitting it while driving by.
Currently, we do not carry the individual mirrors separately for this kit. We're always updating our inventory so please check back soon!
They fit my 2003 F350 perfectly, I already had power mirrors, connectors were correct.
Yes, came with everything . Wouldn't go back to stock again.
Hey Jeremy, Thanks for your inquiry. This part is specific to vehicles with a particular set of options. We will need more information about your vehicle to confirm the fit. The information we will need in order to assist you is your 17 digit vin to verify the mirror options. You can call us at 888-844-3393. Thank you, Corey
cap only
Please take a look at part number TRMRP00038 which are a pair of towing mirrors for a 2003 Ford F250 SD with power mirrors. They are manually folding and telescoping. Please be advised these have a round connector. (90 degree swing).
Only the top glass
No caps to be removed for paint but you can add the paintable caps to them...sorry for the late response
These are the newer style, square mirrors.
This comes with the square plug only.
