In this video, we're going to show you how to replace a front axle on this 2005 Ford F-150 with 4-wheel drive. We show you on the driver side, but the passenger side is the same procedure. The items you'll need for this is a new front axle from 1AAuto.com, an 8mm, 13mm, and 21mm socket and ratchet, a piece of pipe for some extra leverage, a 12mm 12-point socket, an 18mm and 21mm wrench, pliers, pry bar, hammer, torque wrench, and jack and jack stands.

Start off by prying off the hub cap. Then loosen up these lug nuts using a 21mm socket and ratchet and a piece of pipe for some extra leverage. Once you get each of them loosened up, you can raise the vehicle and remove them the rest of the way. Now pull the wheel off.

Turn the wheel and then remove this 21mm nut at the top of your outer tie rod. Once you remove it, you want to just put it back on just a couple threads. Now hammer the knuckle until the outer tie rod drops down. Now you can remove that nut, and just set your outer tie rod off to the side.

Using a pair of pliers remove this cap and then loosen up and remove that 13mm nut. Then you just want to put it back on, just a few threads, tap it with a hammer and make sure it goes through. Then remove the nut the rest of the way. On the other end of the axle there's a series of 12mm bolts. You just need to use a 12mm 12-point socket and then a pry bar to hold the wheel and just loosen those up. We'll fast-forward as Mike removes all six of those. When you remove that last one, just push the axle down to the side.

Now spray this 21mm nut up here on the bottom of your upper control arm, and then remove that nut and put it back on just a few threads. With the nut back on a few threads, just hammer the wheel knuckle until the upper control arm loosens up. Now just lift up on the wheel knuckle and then remove that nut. You can just set the wheel knuckle off to the side carefully. You don't want it to strain those brake hoses. Then just tap the axle and pull it out of the wheel knuckle. You want to feed the axle towards the left side, towards the front of the vehicle. Just angle it down and pull it down and out.

On the bottom is the old front axle; above it is the new one from 1A Auto. You can see they're identical and they'll fit exactly the same. Making sure they're tightened. Now you can remove the jack and feed your axle back into place. You want to feed it back in the same way that you pulled it out.

Now you can take your upper control arm and push it back into the wheel knuckle. Once you push it through, just put that 21mm nut on there to hold it in place. Line up the axle and replace those 12mm bolts. We'll fast-forward as Mike does this. Now tighten each of those to 60 foot-pounds in a crossing pattern. You can see we torqued that one. Then you want to turn the wheel until you get the one on the opposite side. Then torque that one. You want to just repeat this process with each of them. Now replace this 13mm nut and torque it to 20 foot-pounds. Then replace that cap and just tap it into place.

If any of the lines on the back came undone, make sure you push them back in and re-clip them. Then push your outer tire rod up to the wheel knuckle and replace the nut. Then torque that to 111 foot-pounds. Now just tighten up this bolt on your upper control arm. If the stud spins, use a 10mm socket and ratchet. Then you want to torque this to 111 foot-pounds. Then tighten up the nut on the bottom of your sway bar link. Jack up underneath the lower control arm to simulate a wheel being in place. Torque the lower strut bolt to 150 foot-pounds.

Now we'll fast-forward as Mike replaces the wheel and replaces the lug nuts and tightens them preliminarily. Then he lowers the vehicle and tightens them the rest of the way. Then torque each of them in a crossing pattern to 120 foot-pounds. Then just replace your hubcap and you're all set.

We hope this video helps you out. Brought to you by www.1AAuto.com, your source for quality replacement parts and the best service on the Internet. Please feel free to call us toll-free, 888-844-3393. We're the company that's here for you on the Internet and in person.

Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.

Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks!

In this video, we're going to be working with our 2004 Ford F150. We're going to show you how to remove and replace the front CV axle. We are doing this on the driver's side, but this part and information is going to be the same on the passenger's side.

If you like this video, please click subscribe. We have a ton more information on this truck, as well as many other makes and models. If you need this part for your vehicle, you can follow the link down in the description over to 1AAuto.com.

Here are the items you'll need for this repair: 12mm-30mm sockets, wrenches, socket extension, 12-point 12mm socket, pliers, prybar/breaker bar, torque wrench, flat blade screwdriver, rust penetrant, jack, and jack stands.

Using a pair of pliers, wiggle the cap out of the center of the hub and remove this thirteen millimeter nut at the end of the axle. Break the lug nuts loose with a nineteen millimeter socket and a breaker bar. You only want to crack them loose about one turn. We're going to do this on a lift to make it easier to show you, but this job can be done at home on a jack and jack stand. Once we've loosened the wheel and the axle nut, we'll raise and support our vehicle. Finish removing the lug nuts and remove the wheel and tire from the truck.

We'll remove these six, twelve-point 12 millimeter bolts with a twelve-point socket and ratchet so we can disconnect the axle flange from the differential. You'll need a friend to get inside the vehicle and hold the breaks as you break the bolts loose. We'll rotate it. Remove each one as the get on and off the brakes.

We've soaked all of our hardware in penetrating oil before starting here because these flanges tend to get pretty rusty. This is not somewhere you want to break off a bolt. Have your assistant release the brake pedal. Rotate the axle around a hundred and eighty degrees. Have them reengage the pedal so you can finish removing the hardware. Using a 30 millimeter socket, remove these nuts at the bottom strut bolt. You may have to support the bolt side with a twenty seven millimeter wrench. Remove the nut and bolt.

We've cut the wheel all the way to the left to allow more room. Now, we can pry out from under our strut. Pull it out to the side. Easily remove our axle from the truck. This will take a little bit of work. You're going to have to move it a little. Fight it. You may need a pry bar or a hammer to work it out. Sometimes, they do just come out easily.

Here, we have our old CV axle that we removed from our truck and our new part from 1AAuto.com. As you can see, these parts are nearly identical. We have the same shaft at the end, same threads, and it comes with the new nut. We have the teeth to lock into our hub. Same six bolt flange at the far end. The shafts are a little bit shorter in the center. But, the overall length of the axle is the same. That's what matters here. These boots just come out a little bit farther. These ones here are all torn up and broken. You can see the end cap blew out and let the grease and barrings out of the other end of our CV axle during removal.

CV axles are prone to clicking when taking sharp turns. Most noticeable when the vehicle is in four-wheel drive. But, even when this is turning with the hub and you get it to a steep angle, when you turn the car, it will make a clicking sound. If your CV axle is blown out, making noise, or has snapped and failed completely, preventing your vehicle from going into four wheel drive and moving around underneath the truck, potentially damaging some other components.

This new part from 1AAuto is going to go in, direct fit, just like your original equipment and fix you up right.

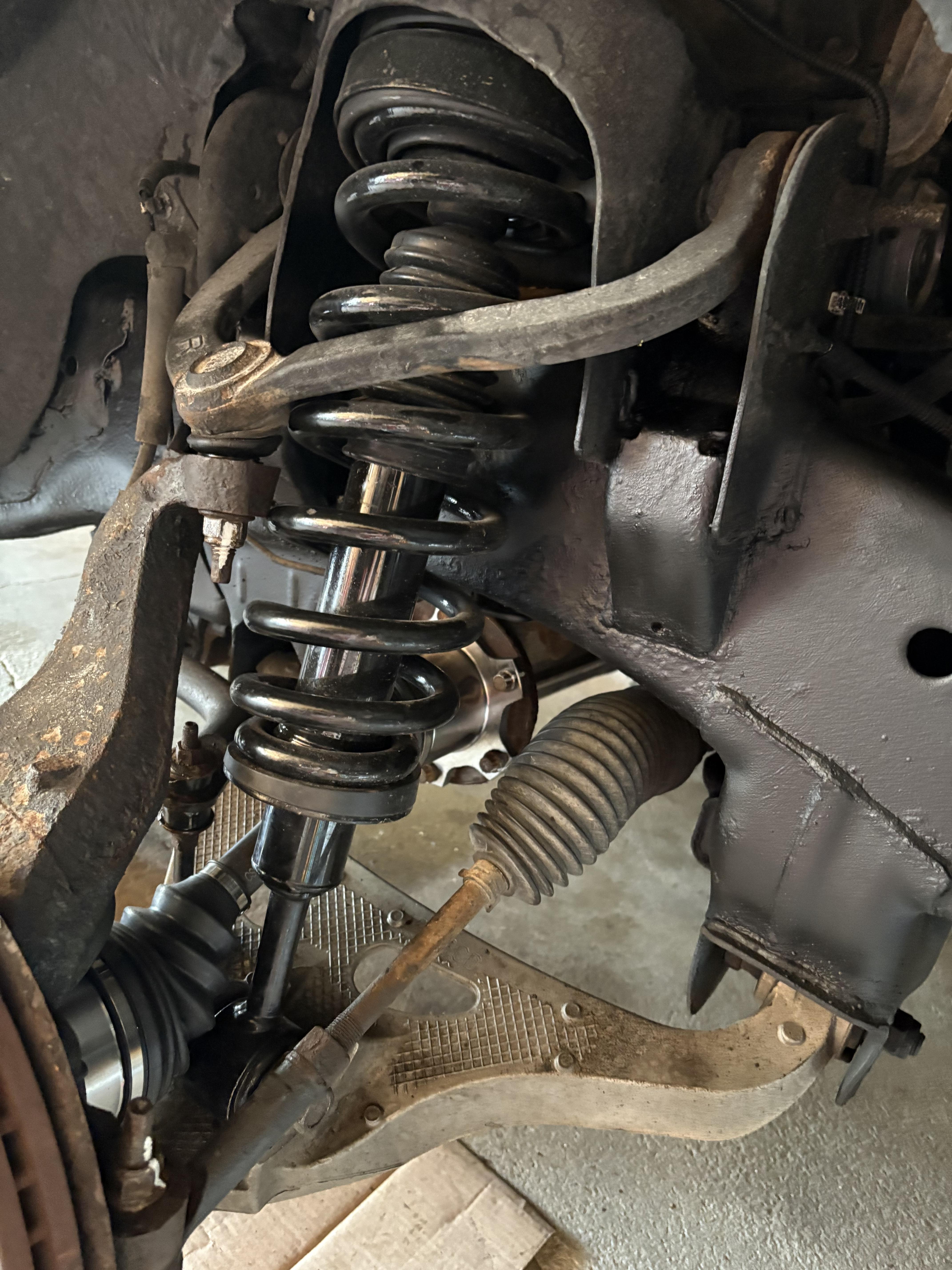

Reinstall the CV axle, being careful not to dislocate either of the joints or tear the boot. Put the strut back into place. To reinstall the bottom strut bolt, we're actually just a little bit out of line here. We're going to take a pry bar, put it through this notch in the bottom of the control arm, and push up just a little so our bolt slides in easily. We'll straighten out our wheel. Spin the nut back on by hand. Finish tightening it down with a thirty millimeter socket and ratchet and a twenty seven millimeter wrench to hold the bolt on the other side.

Line up the flange at the rear of the CV axle. Reinstall your twelve-point, twelve millimeter bolts. Get these in as far as you can by hand. Then you'll need your assistant again to work the breaks while you tighten them down with a socket and ratchet.

Reinstall the wheel and tire. Start your six lug nuts by hand. Reinstall that thirteen millimeter nut on to our axle as far as we can. Then put our vehicle back on the ground. Tighten down the axle nut with a thirteen millimeter socket and ratchet. Reinstall the dust cap over the axle nut. Tap it back into place. You can use a rubber mallet or a piece of wood on a hammer. I'm just using the end of the ratchet here because it's handy. Torque the lug nuts to 150 foot pounds. It's very important when torqueing six lug wheels. The cross pattern is different from your standard five lug wheel. You want to make little triangles. We'll skip one lug and, tighten the first three. Then, we'll go across, skip one, skip one again. We'll be tightening the wheels in two small triangles.
