About TRQ:
TRQ is a trusted brand dedicated to making every repair a success story by combining premium parts with easy installation. Each TRQ part is engineered by a team of automotive experts to meet or exceed OEM standards, delivering enhanced performance and maximum longevity. With rigorous in-house testing, the brand ensures superior fit and function across every product line. TRQ also provides customers with best-in-class, step-by-step installation videos—so you can complete repairs with confidence, whether you're a first-time DIYer or an industry professional.
Product Features
Returns: Parts with electrical components cannot be returned once installed.
Attention California Customers:
WARNING: This product can expose you to chemicals including Lead and Lead Compounds, which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
Returns: Parts with electrical components cannot be returned once installed.
FREE Shipping is standard on orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii and Alaska.
Shipping is not available to a P.O. Box, APO/FPO/DPO addresses, US Territories, or Canada for this item.
Expedited is available on checkout to the United States, excluding Alaska, Hawaii.
Final shipping costs are available at checkout.
Created on:
Tools used
Brought to you by 1AAuto.com, your source for quality replacement parts and the best service on the Internet.
Hi, I'm Mike from 1A Auto. I hope this how-to video helps you out, and next time you need parts for your vehicle, think of 1AAuto.com. Thanks!
In this video, we're going to show you how to replace the ignition coils on this 2006 Ford Explorer. It has the 4.6 liter V8, and the only tool you'll need is an 8 millimeter socket with a ratchet and extension.

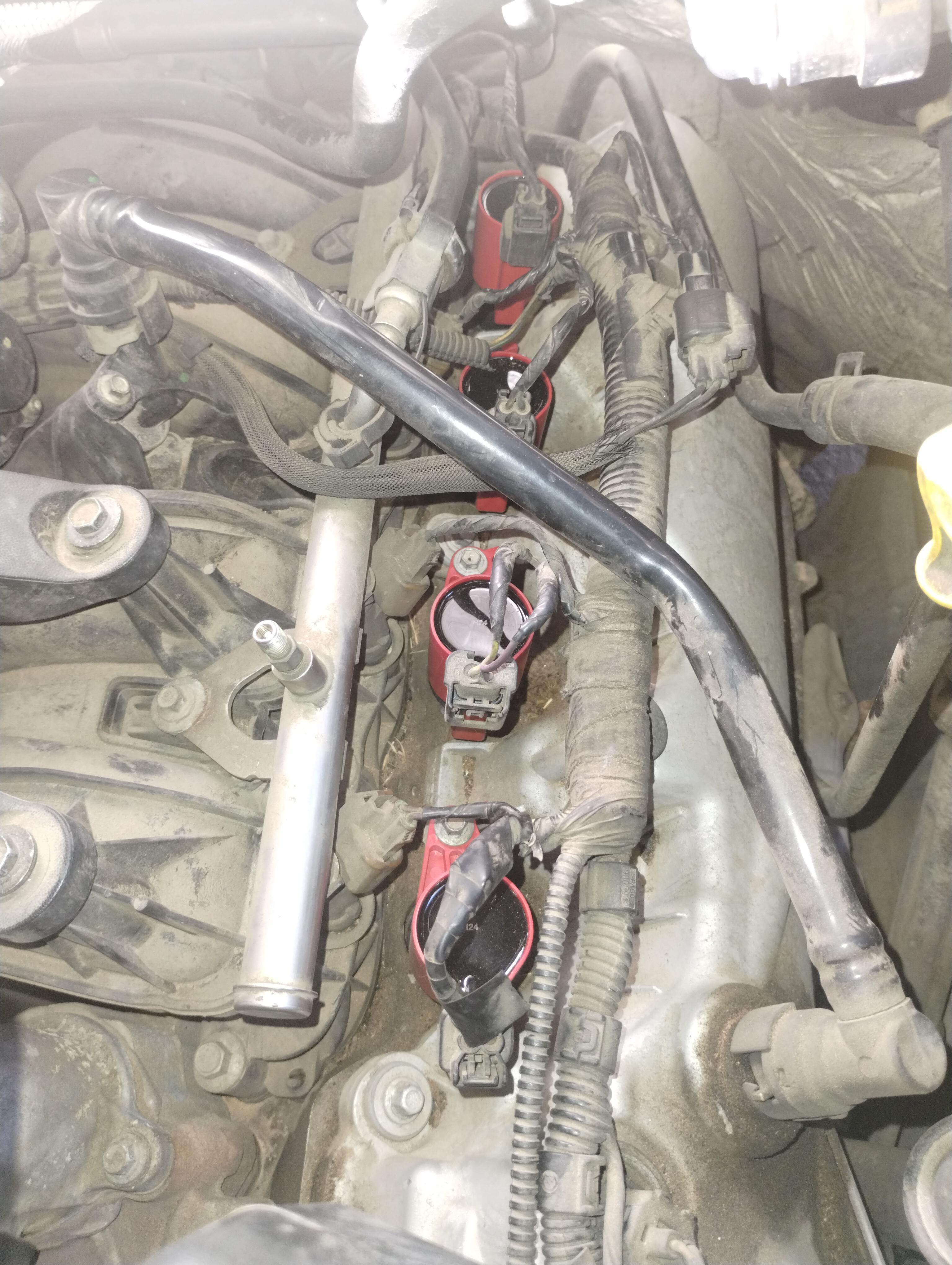

Open up the hood, and in the engine, there are four coils on each side: one, two, three, and four here on the driver side. You'll need to unplug the harness. There's just a little tab that you can press with your thumb and then pull. Pull and wiggle it a little bit to get it off. Then either a 7mm or 8mm bolt that holds the coil down. You see the ones on the driver side. Passenger side is obviously located somewhat in the same position on the other side.
I'm going to remove the second one back. It's just the easiest one to video. Again, push the tab with your thumb. Pull off the connector. 8mm socket with a ratchet and extension, remove that bolt. Then once the bolt is off, make sure you retrieve it. Then the coil will pull out with just a little bit of a half turn, as well as just moving it back and forth and it pulls up and out.
The new coil from 1A Auto is going to go right down in just like the original one. You want to push it down in and give it a good firm push. Make sure that the hole lines up with where the bolt goes into the intake manifold or head. Start that bolt on and tighten it up. Obviously you'll repeat this procedure for all eight, or however many you want to replace. Make sure you reconnect all of your coils, and you're all set.
Thanks for tuning in. We hope this video helped you out. Next time you need parts for your car, please visit 1AAuto.com. Also check out our other helpful how-to and diagnosis videos.
ICA64248
One of the coil wires was not attached. I had to remove the rubber boot, and attach the wire. It was causing a misfire, and I was already trying to fix a misfire.
Great product
These are top tier and have never had an issue with this brand. The prices are great as well and delivery is quick
These coils seem to be working well. I was skeptical of non-OEM coils after some past bad experiences, but this set looks to work well.
Fixed misfire not the easiest coils to install due to the vehicle not the product
Ordering the parts was easy, and the parts work great.
Great service, great prices, quality parts
Though my vehicle was passed through for the change out instantly with installing these coils I received full power back to my V8. Thanks 1A-Auto for quality and reasonable price!!!
They fit properly & worked,good
There was nothing for me to dislike. There was a noticeable difference immediately on first drive after installing. Easy to install. Nothing extraneous. '06 Mustang GT 4.7L
Possibly, it does fit my 2007 Ford Expedition EL Eddie Bauer.
Yes, this will be able to fit for your vehicle.
No, these do not come with grease packets.
Yeah they look good but they're not the right ones not the ones I ordered totally different And for some reason no one will respond so I can get a refund
Actual voltage specs are not listed or available.
No
This part will not fit your vehicle, but we may have a part that is listed to fit. Please enter your vehicle's year make and model in the search bar at the top of the page. This will display parts guaranteed to fit your vehicle. Just be sure to verify all of the information shown in the Vehicle Fit tab before ordering.
Yes, these items are CARB compliant.
We would need your 17-digit VIN to confirm the fitment of this kit.
Hello Mikki I'm responding to your question about the 1aerk00508 coils .The reason I purchase them was simply upgrade the stock coils I'm not a professional mechanic just and average diyer trying to find my way to keep my truck running Great Steve B
