Jeep Cherokee Fuel Pump Module Assembly TRQ FPA62008

Name: 1AFPU01189-Jeep Cherokee Fuel Pump Module Assembly TRQ FPA62008
Brand: TRQ
SKU: 1AFPU01189
Price: 83.95 USD
Availability: InStock
Rating: 5/ 5.0 (17 reviews)

97-01 Jeep Cherokee Fuel Pump Module Assembly

$ 83.95

$112.95

26% OFF

$112.95

26% OFF

FREE SAME DAY SHIPPING

Read 17 REVIEWS

FPA62008

In Stock

This part doesn’t fit a . Select from parts that fit.

Show parts that fit

Orders must be placed by 2pm ET

1A Auto Lifetime Warranty

Frequently bought together

Jeep Cherokee Fuel Pump Module Assembly TRQ FPA62008

$83.95

Quick Disconnect Pliers

$35.45

Description

Vehicle Fit

Warranty & Shipping

Part Details

Resistance Ohms Full: 20 Ohms
Fuel Tank Pressure Sensor Included: No
Gasket Or Seal Included: Yes
In Tank or External: In Tank
Outlet Quantity: 1
Lock Ring Included: Yes
Inlet Type: Strainer
Fuel Type: Gas
Pump Type: Electric
Strainer Included: Yes
Maximum Flow Rating: 29.06 gph
Minimum Flow Rating: 21 gph
Average Flow Rating: 25 gph
Resistance Ohms Empty: 270 Ohms
Minimum Pressure: 47.8 PSI
Inlet Quantity: 0
Outlet Type: Quick Connect
Fuel Sending Unit Included: Yes
Outlet Outside Diameter: 9.49 mm
Maximum Pressure: 53.6 PSI
Wire Harness Included: No

Product Features

Complete Assembly: No modifications or assembly required

Carbon Brush and Commutator: More than twice the service life compared to copper

Flourine Rubber Seals: Resistant to high temperature, fuel, and solvents

SAE J2044 Compliant: Improved mounting security, minimized installation error

Item Condition: New

Attention California Customers:

proposition 65 icon WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Lifetime Warranty

This item is backed by our limited lifetime warranty. In the event that this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.

Returns: Parts with electrical components cannot be returned once installed.

FREE Shipping is standard on Orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii, Alaska and US Territories. Shipping is not available to Canada.

Expedited is available on checkout to the United States, excluding Alaska, Hawaii and US Territories as well as P.O. Boxes and APO/FPO/DPO addresses. Final shipping costs are available at checkout.

Product Reviews

Loading reviews

5.00/ 5.0

Fast shipping quality parts

Thomas

Great product and easy to install. Fast shipping and easy part look up.

1AFPU01189-Jeep Cherokee Fuel Pump & Sending Unit Module

Tom

Fast delivery, perfect fit, great price and easy install. 1A Auto is my go to store for anything automotive. Thanks again for another great product.

Fixed fuel pressure issue ??

Neil

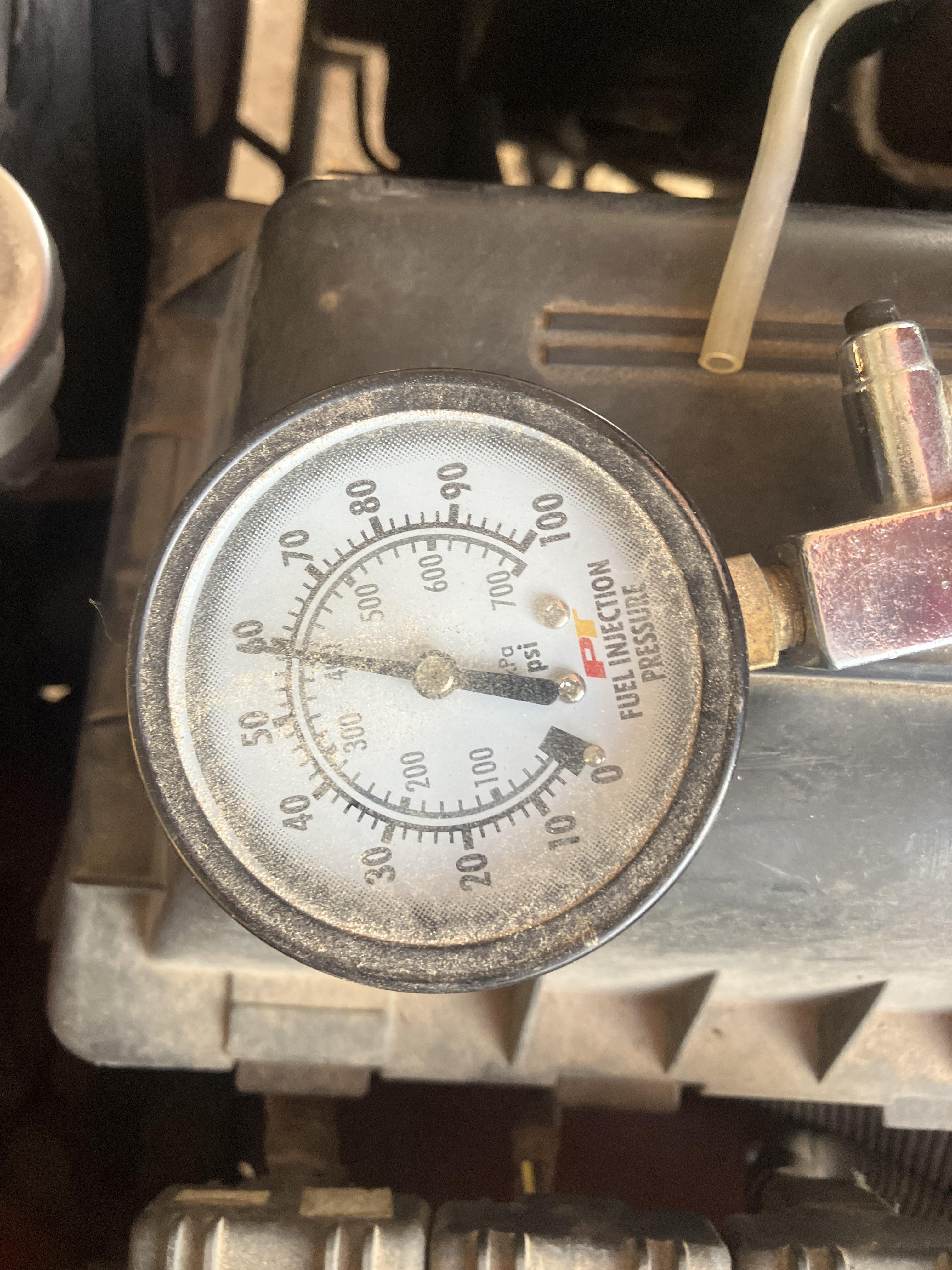

Works as it should ??Pressure drop used to drop off randomly. Now it's just a steady 45

Worked great

Matt

This part worked great and has given me no problems over a year later.

right on point

bought this for a 97 jeep Cherokee 4.0. eady to put in and worked as it should. jeep fired right up. just remember you may have to bleed your line.

william

fast shipping,and fit as it should

Great part and service

Got the two day shipping it came right as scheduled everything worked out great thank you Great part and service

Fixed my issue / Works like a champ!

PATRICK

Installed on my 2001 Jeep Cherokee XJ in Oct19 and I have been running it near daily for the past 4 months with no issue after replacing the stock Bosch assembly with this TRQ from 1A. I was a bit skeptical as I watched a few tube videos and read on some forums suggesting to replace with a Bosch is possible. I also realized there may be a ton of other less quality products but i needed to try something. My issues: XJ had long starts, extra cranking until it would turn over. I believe this was a fuel prime issue as it would start up quick after short rests but would always long crank after sitting all night. Also after starting, the first time i would really get on the gas pedal the XJ would stutter a little then accelerate fine, it would only happen on first take off. Again thought prime issue. Install: I would encourage anyone with any mechanical ability to try this swap in their garage. 2 sets of hands makes it pretty easy. I also purchased the specialty tool to ensure i wou

Worked perfect

Tinisha

Great pump. Fit perfectly and came with a new gasket. Is a challenge to press pump done and twist on locking cap, but overall just what I needed. Jeep runs again.

Fuel pump

Donald

Great fit was a drop in great price

Works well

Peter

Great OEM replacement fuel pump for a good price. Fixed my bogging/surging issues and is running strong.

thumbs up great company

james

100 percent satisfied great fuel pump great price quick shipping even though i know how to do it i watched the video and must say it was great.

Fantastic product

Alberto

Was a perfect fit, and fuel is being delivered as it should.

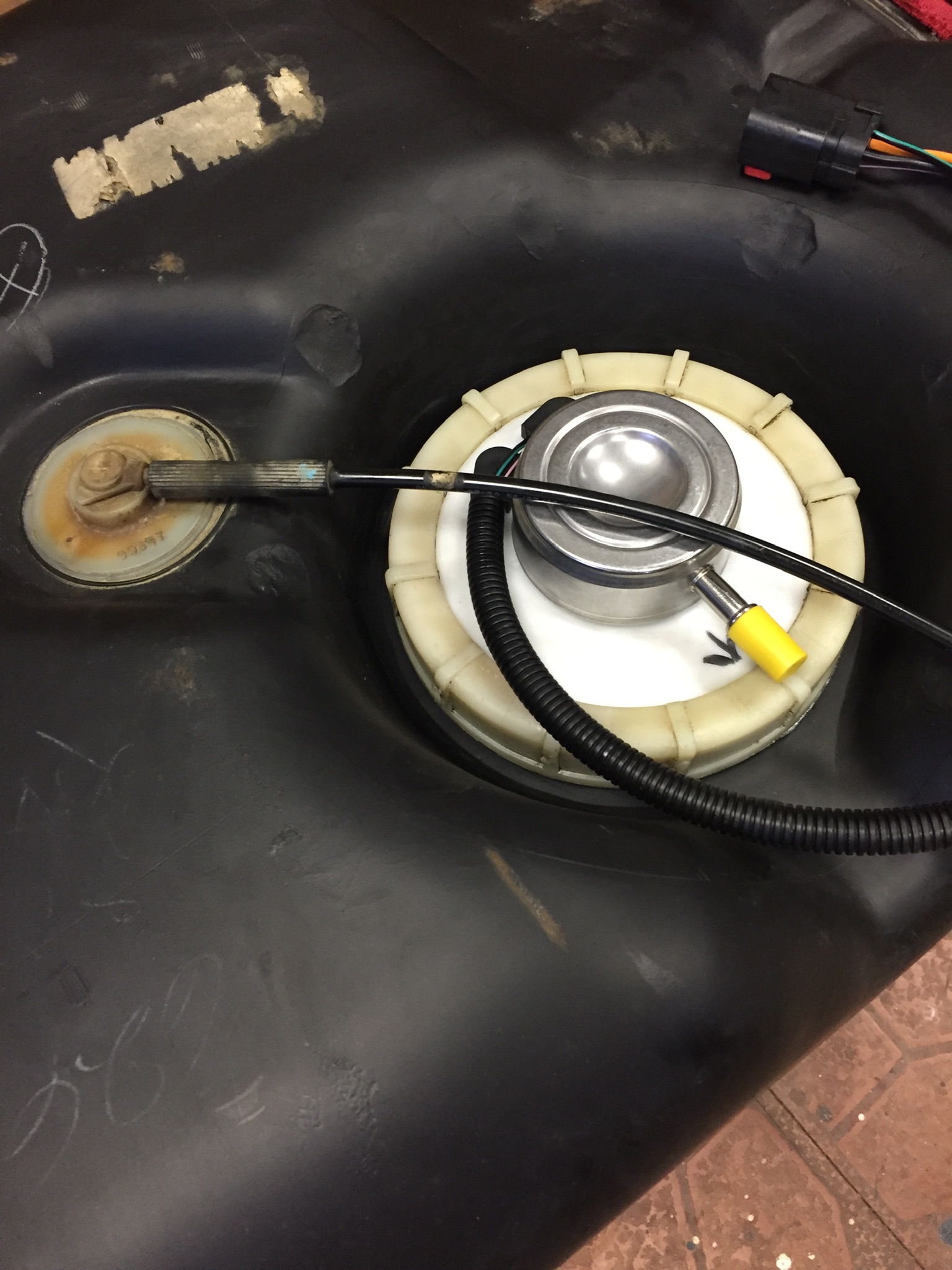

2000 Jeep XJ

[{"url": "https://wac.edgecastcdn.net/001A39/prod/media/pNISJll75W64CYGsite/d912a15dc55abd56bfe05dac9c069bdf_1678686928840_4.jpeg", "caption": ""}]

Neil

Perfect

Great OEM replacement

Riley

Seems to be great quality OEM replacement. Still working great after 2 weeks, Jeep cold starts instantly now, and my fuel gauge works again! Even comes with a sticker for the toolbox.

Fixed my "no fuel" issue

Jake

Great product, simple to install and a great price compared to other options. Jeep is back up and running after the factory sender failed. A couple quick tips on verifying if the sender is bad: 1. If your engine cranks but won't start, swap the fuel and starter relays. They are the same, and if you're engine still cranks after swapping your fuel relay is good. If it doesn't crank, get a new relay. 2. If the relay is good, check power at the rear fuel sender electrical connector (just in front of the fuel tank). If there is power there, you need a new sending unit. Hope this helps someone else tackle this job for the first time. P.S. I had to do the job twice! My fault.. be careful when installing the new sender. The float is delicate and it will pop out if you hang it up during install. Then your fuel gauge reads full all the time! Also, plug the filler neck and vent hoses with a rag to prevent debris entering the tank.

TRQ Fuel Pump Assembly

Garrett

Everything had shipped in a timely matter and the product was on my doorstep within a few business days! Excellent condition for the price you pay! Works amazing even fixed my gas guage on my dashboard! With this fuel pump you can also see a increase in your MPG! Definitely would recommend buying this product if your looking to replace your Fuel Pump!

Customer Q&A

Maybe a silly question but, does the pump come with the fuel filter?

February 1, 2022

Shane C

Yes, this will come with fuel filter.

February 1, 2022

Emma F

Yes I believe it does.

February 2, 2022

Mordecai E

Yes it does.

February 2, 2022
